Industrial 3 pass biomass steam boiler

FOB Price:

US 4600-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Yuanda Boiler

Products Model:

SZL

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: SZL

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Nude packing and wood packing
Delivery Detail: Shipped in 15 days after payment

Specifications

Patented technology coconut shell,palm shell,rice husk bagasse,peanut shell Biomass Boiler

1.25Mpa 1.6Mpa Biomass boiler auto fuel feeding

Industrial 3 pass biomass steam boiler

1.biomass boiler model SZL series double drum

2.Large furnace,enough burning chamber

3.Steady output,high quality steam

5.auto fuel feding system,labor saving

6.Patented technology ,special design D type layout design,make high efficiency,suitable for all kinds low heat value biomass fuel burning

Product Description

(1)This type of boiler adopts automatic fuel feed system,double drum,water tube structure which ensure boiler safe and easy operate.

(2)Complete control functions, security and stability,run more securely.

(3)New furnace arch and insulation materials, improve thermal efficiency.

(4) The convection bank improve the heat transfer efficiency.

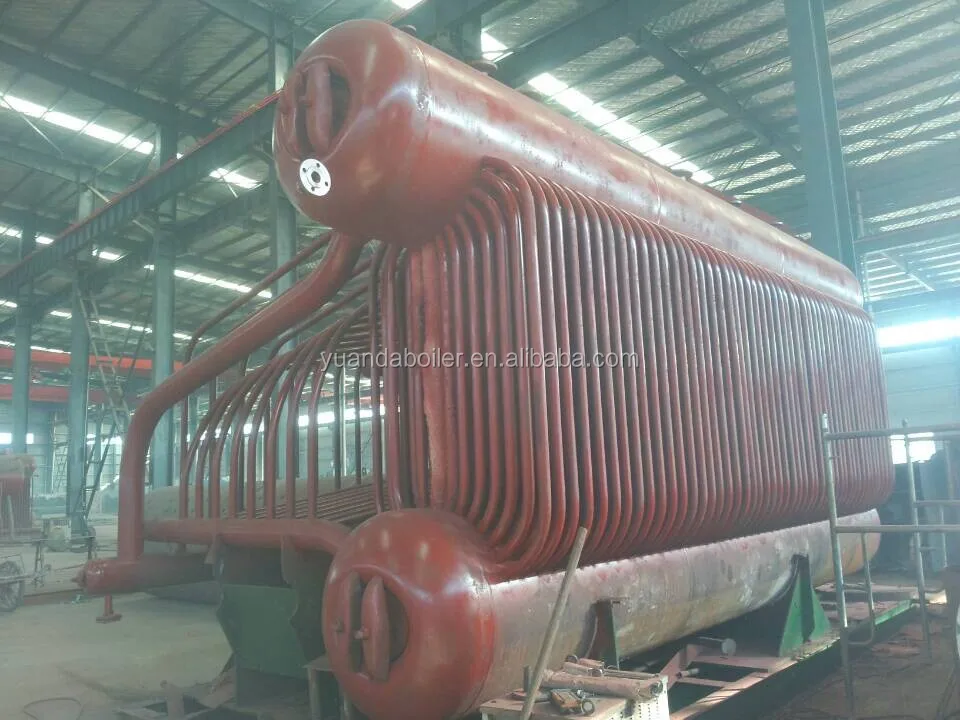

(5)SZL type is double drum water pipe assembly chain grate boiler arrangement (type A) that has the large capacity.

(6)The two boiler barrels are vertically designed,reducing the boiler size and saving the boiler room cost.

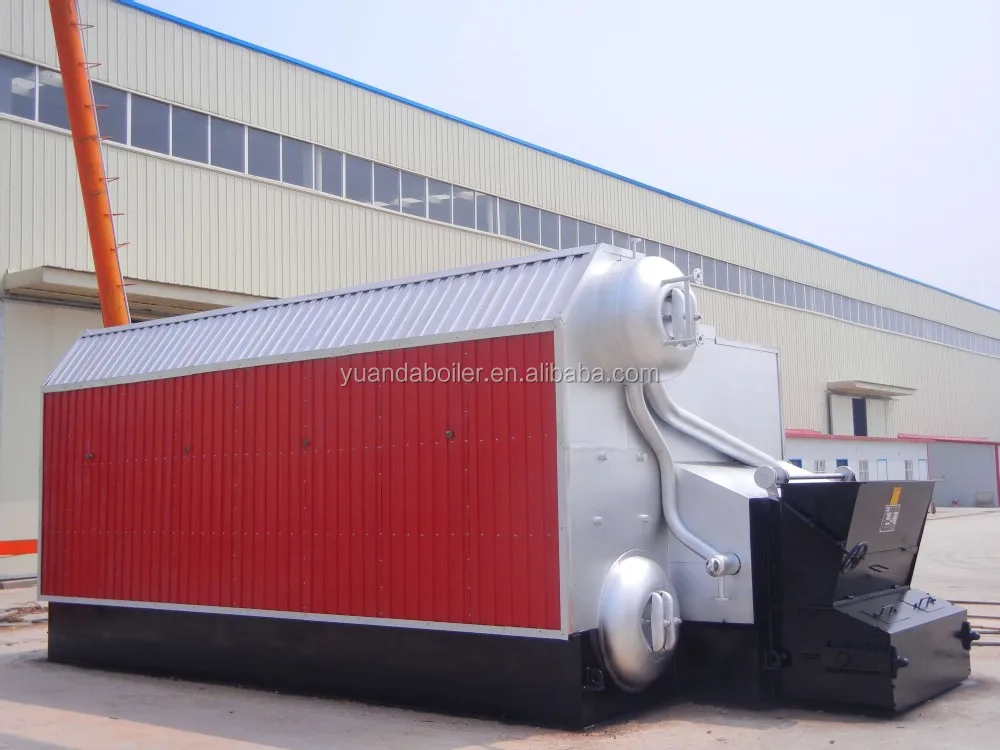

SZL biomass fired boiler is double-drum assembled chain grate boiler, with rated steam capacity of 4 ton-35 ton. Biomass fuels such as rice husk, bagasse, palm kernel shell, distiller grains, straw, coconut shell, wood pellet, wood chips are available in the horizontal biomass fired steam boiler.

Applications:

The assembled biomass steam boiler can be applied in Chemical plant, Food factory, Beverage factory, Textile mills,Paper mill, Sugar Plant.

Advantages:

1.Membrane water-cooling structure ensure the sealing of furnace

2.Invented "α" furnace arch technique improves fuel combustion efficiency and has a wide fuel applicability

3.Improved GEF special slag technology, the grate is stable and reliable, and the burning efficiency is greatly improved

4.Unique two times wind feeding structure extends the staying time of the fuel in the furnace, fuel adaptability and utilization is improved

5. Special grate structure, no fuel leak, uniform ventilation, easy install

Biomass boiler techincial data

Item	Unit	SZH2-1.25(2.5)-T(Hand fired )	SZH4-1.2(2.5)-T(Hand fired)	SZL2-1.25(2.5)-T	SZL4-1.25(2.5)-T	SZL6-1.25(2.5)-T
Rated evaporation	T/Hr	2	4	2	4	6
Rated working pressure	Mpa	1.25(2.5)	1.25(2.5)	1.25(2.5)	1.25(2.5)	1.25(2.5)
Feed water temp	°C	20
Rated steam temp	°C	194(225)	194(225)	194(225)	194(225)	194(225)
active grate area	m2	2.78	4.5	3.1	4.6	7.3
Heated area	m2	120	160.2	120	169	190
Designed thermal efficiency	%	81	81	81.6	81.6	81.6
Fuel consumption(7000kcal/kg)	Kg/h	225(228)	450(462)	223(227)	447(453)	671(684)
Transportation Weight	T	17(17.5)	22(22.7)	20(25)	28(29)	36(39)
Transportation dimension	mm	4850X2690X3462(3468)	5450X3040X3462	5960X2960X3462	6510X3130X3462	7830X3346X3462

Company Information

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
