Brand Name: Yuanda Boiler
Model Number: DZH Wood fired 100hp 200 hp caldera de vapor Industrial
Place of Origin: Henan, China (Mainland)
Industrial wood boiler,wood steam boiler
100hp use 2 ton wood steam boiler,
200hp wood boiler is about 4 ton wood steam boiler
Simple introduction for Yuanda Boiler wood boiler
Wood boiler operation cost and equipment investment is very low.
Because wood boiler is manual one,so its equipment cost is low.
Because wood fuel is cheap ,it can be wood chips,wood waste,wood dust,chopped wood,so the fuel cost is cheap
Yuanda Boiler Wood Boiler working life is more than 20 years
Because of wood boiler is manual type,our boiler installed in 1993 year,not still under working.
Yuanda Boiler wood boiler is high cost performance boiler
we supply full scope of suply,good performance boiler accessories for wood boiler,make the boiler steady working status
Our scope of supply for the wood boiler is as below:
Id fan fd fan,electricla cabinets,valves,meters,2 pumps,steam header,water softener(water flow type),steam header,dust cleaner,chimney,smoke duct.economizer.in stallation piping and fittings

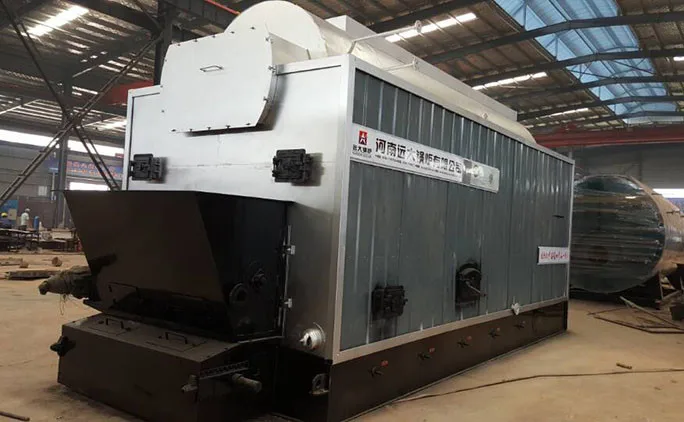

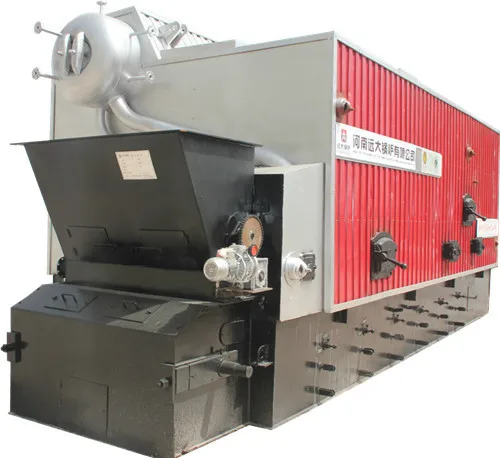

Wood Boiler pictures
Wood boiler Features
1.Single cylinder,fire tube(Spirally corrugated tube) and water tube.
2.Packaged style
3.Fuel can be wood pellet,peanut shell palm shell,coconut shelland other biomass fuel.
4.Hand fired type.
5.Capacity 1Ton-6Ton/HR
6.Equipped with full set auxiliaries,after simple installation,the boiler can operate
7.Working life can be over 20 years.
wood boiler Wood fired steam boiler furnace specifications
Model |
DZH1-0.7-AII |
DZH2-1.0-AII |
DZH4-1.25-AII |
DZH6-1.25-AII |
Rated evaporation( t/h) |
1 |
2 |
4 |
6 |
Rated steam pressure( Mpa) |
1.0 |
1.0 |
1.25 |
1.25 |
Feed water temp(°C ) |
20 |
20 |
20 |
20 |
Rated steam temp(°C ) |
184 |
184 |
194 |
194 |
active grate area( M2) |
1.85 |
3.4 |
5.18 |
7.55 |
Applicable coal style |
AII |
AII |
AII |
AII |
flue gas temperature(°C ) |
157.3 |
163.1 |
180 |
166.3 |
Designed thermal efficiency(%) |
80.33 |
80.54 |
80.28 |
80.94 |
fuel consumption (Kg/h ) |
118 |
238 |
472 |
685 |
Transportation Weight(t) |
13.2 |
13.8 |
23 |
32 |
Wood fired Boiler structure
Fuel applicable
About Yuanda Boiler
- Established in 1956 year
- State Certificated Boiler Manufacturer
- China Industrial Boiler Association Member
- China Welding Association Member
- China Honoring & Credible Enterprise
- ISO9001-2000 Quality Management System.
So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.
Warranty:
One-year warranty and full-life service for all of our steam boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for one year.
How to select a wood steam boiler ?
Kindly please make sure items as below before enquiry
1.Capacity : how much steam do you need per hour ? by t/h, kg/hr, by bhp, by hp
2.Fuel: wood log,wood chips,wood pellet or wood briquette,wood waste
3.Working pressure: tell us how many psi or how many bar or how many Mpa do you need ?
4.Capacity 1 t 2 t 4 t 6t can use manual type,capacity bigger than 6 ton should use Chain grate stoker type.
Yuanda Boiler company Welcome you to contact with us for more detailed communications
